1-16 Row Population Planter Monitor

Product Details:

1-16 Row Population Planter Monitor
Pin Layout Power 24, 25 Ground 26, 27
made in the USA

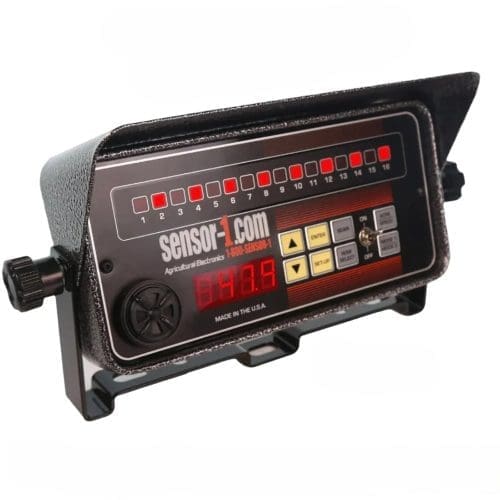

SENSOR-1 Population Monitor is designed to monitor population and seed flow. It is a compact design measuring 8-½” long, 4-½” wide, and only 1-¾” deep. Features two display modes: Mode 1 – LED lights flash each time a seed drops; Mode 2 – LED lights remain off until a row fails. Displays population (seeds per acre), average population, speed (MPH), field acres, total acres, and seed spacing per inch. With a high/low population alarm, hopper-level sensors, and population update in real time. Includes sun cap, bracket, monitor & power cord, and user manual.

NOTE: If ordering just the Monitor, know your pinout to match your harness!

Sensor-1 Monitor Pins out Dickey-John
Pin Layout Power 24, 25 Ground 26, 27
Dickey-john – (Under 12 Rows) Power is in pin 24, Ground is in Pin 26
Dickey-john – (12 & 16 Rows) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
