1-16 Row Seed Flow Planter/Drill Monitor

Product Details:

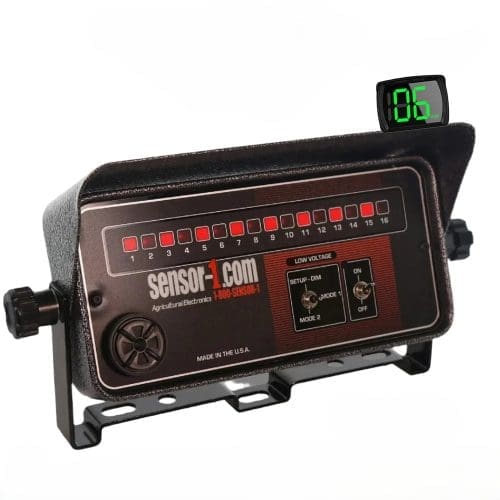

SENSOR-1 Seed Flow Monitor is a compact design measuring 8-½” long, 4-½” wide, and only 1-¾” deep. Features two display modes: Mode 1 – LED lights flash each time a seed drops; Mode 2 – LED lights remain off until a row fails. Set up a switch to set a base point to measure the average seed flow. If the seed count drops below 50% of the set-up point, the alarm will sound to indicate reduced seed flow, and the LED lights will flash to indicate row failure. Includes sun cap, bracket, monitor & power cord, and user manual.

NOTE: If ordering just the Monitor, know your pinout to match your harness!

Sensor-1 Monitor Pins out John Deere or Dickey-John
Dickey-john – (12 & 16 Rows) Power is in Pins 24 & 25, Ground is in Pins 26 & 27
