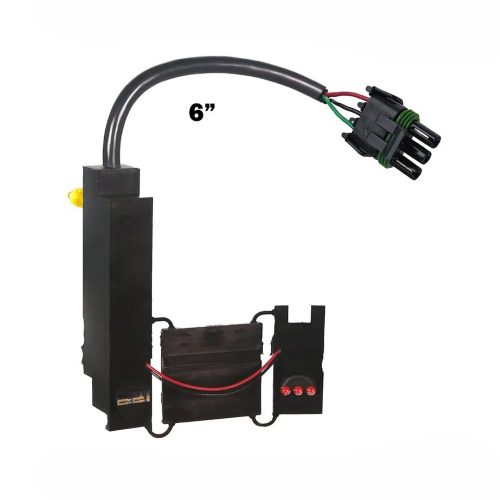

6in High-Rate Population Sensor

Product Details:

The Hy Rate™ 3 LED Seed Sensor is the sensor of choice for large seed types and seeding rates of 1 to 135 seeds per second, with up to 98% accuracy depending upon the application of the sensor. Examples of these include: corn, soybeans, sunflowers, sorghum, sugar beets, and edible beans. Using optical technology, the seed sensors operate based on the principle of photo detection. Light-emitting diodes (LEDs) create a thin field of light across the interior of the seed tube. A photo detector on the opposite side of the tube continuously monitors the intensity of the light. Any seed that disrupts the light source of the sensing zone is detected by the photo detector cell, and the corresponding seed pulse is communicated to the monitor.

Features and Benefits:

Multiple mounting options for seed tubes, delivery hoses, or specialty planters
Population blockage detection
Easy installation
Optical technology – minimizing disturbance of seed flow
Compatible with most planters, seeders, and OEM monitors
Storage temperature – 55°C – 105°C
Operating temperature – 0°C – 85°C
Humidity – 0 – 95%
Supply voltage range of 7.2 – 8.8 volts DC
5 volts self-triggering circuitry
AA58293 ,Agco# ACW0844320
