Major Front Axle Overhaul Kit

Product Details:

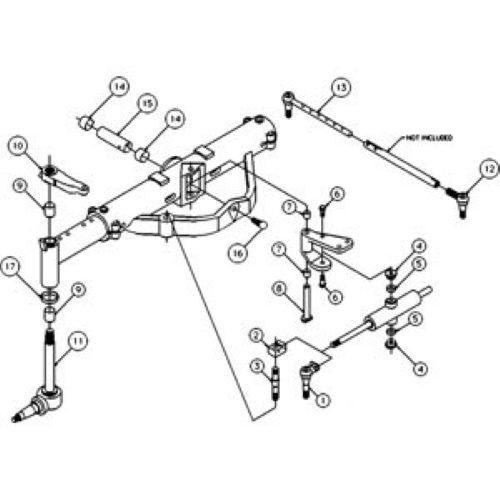

image references: (1 to 17 of 17)
Ref Item Number Description
01 A-71820C91 Cylinder End
02 A-533287R2 Cylinder End (Block Type)
03 A-223314 Cylinder Pin (Block Type)
04 A-531237R1 Trunion
05 A-533283R1 Bushing, Steering Cylinder Pivot
06 A-531238R1 Bolt, Steering Arm Trunion (Special)
07 A-71788C1 Bushing, Center Steering Arm
08 A-531239R1 Pivot Pin, Center Arm
09 A-358958R1 Bushing, Spindle
10-11 A-71785TLS Taper-Lok Assembly (Set/2)
12 A-384006R92 Tie Rod, Inner
13 A-359984R93 Tie Rod, Outer
14 A-531242R1 Bushing, Axle Pivot
15 A-531240R1 Pin, Axle Pivot Front
15a A-39-5698 Pin, Pivot Pin Retaining
16 A-65320C3 Ball, Axle Pivot
17 A-185106C1 Bearing, Thrust
