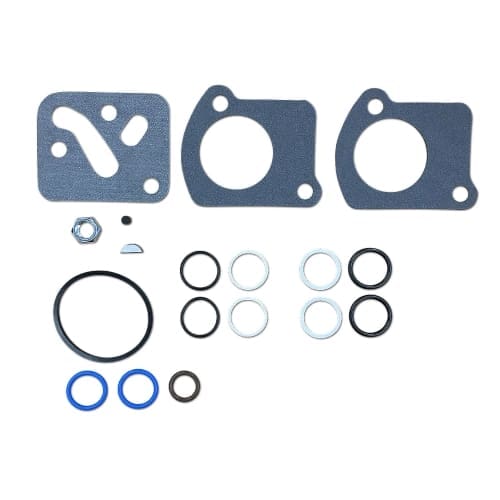

Hydraulic Pump Gasket

Product Details:

18-piece kit plus instructions
(2) pump mounting gaskets (351677R1)
(1) pump manifold to touch control assembly mounting gaskets (352034R2)
(1) pump body quad ring (510185, old # 353828R1)
(2) bearing seal o-rings; 15/16″ OD, 3/4″ ID x 3/32″ thick (86977728, old # 252707R1)
(2) pump manifold front o-rings; 7/8″ OD x 21/32″ ID x 7/64″ thick (72585739, old # 350667R1)
(2) back-up washers; 15/16″ OD (355047R1)
(2) bearing seal o-rings; 7/8″ OD x 3/4″ ID x 1/16″ thick (353827R1)
(1) 3/8″-24 UNF jam nut (124925, old # 114494)
(1) woodruff drive key; # 3, 1/8″ x 1/2″ (124543, old # 106749)
(1) pin seal (355882R1)
(1) shaft seal o-ring; 11/16″ OD x 1/2″ ID x 3/32″ thick (86637641, old #’s 252739R1, 14457080)
(2) back-up washers; 7/8″ OD (355199R1)
